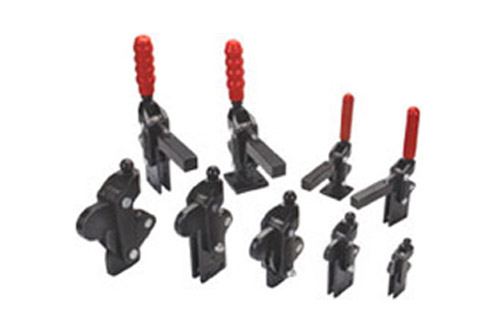

H.V. Series Toggle Clamps

Steel-Smith has designed the HV Series clamps to be adaptable & durable, and to withstand abuse in heavy duty applications. HV Series clamps ideally used in automotive manufacturing & other production environment which require high clamping forces & long service lfe. HV Series clamps have a unique design that offers the designer both complete design flexibility & clamping force. The H.V.Series clamps comprise of a very strong & rugged toggle mechanism. The clamping arm & handle which are provided with the clamp can be welded at the desired angle to suit the individual requirements of work pieces. All components are of first grade steel & the axles are hardened running in either hardened bushes or directly in close tolerenced holes. The clamps are finished chemi-black.

H.V. Series Toggle Clamps


H.V. Series Toggle Clamps
H.V. Series Toggle Clamps

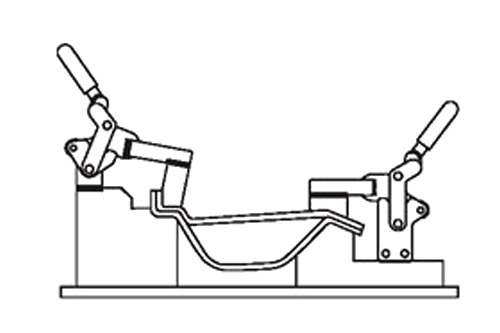

The Versatility of Steel- Smith Clamps allows handle positioning of 1200 maximum angular positioning arc through 3600  orbital arc. The clamping arm has 1200 maximum angular positioning arc. These exceptional features make Steel-Smith H.V. Series clamps ideal for many job requirements otherwise requiring special designed clamps.

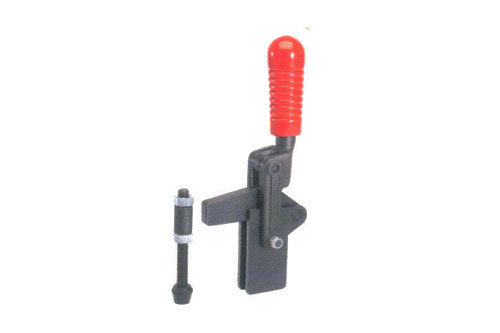

Solid Arm With Weldable Bush

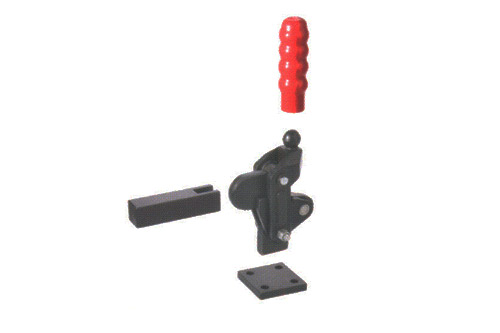

Swivel Base Camp

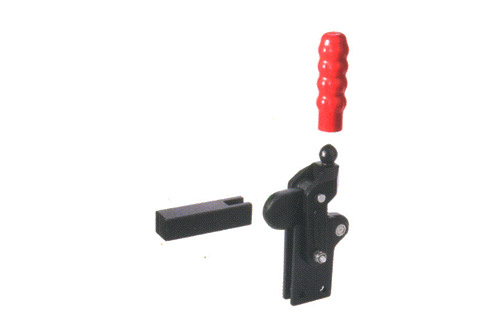

Straight Base Camp

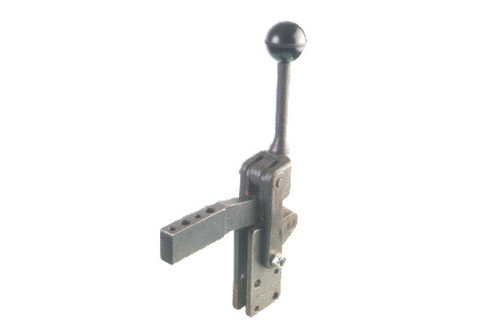

Horizontal Arm Straight Base

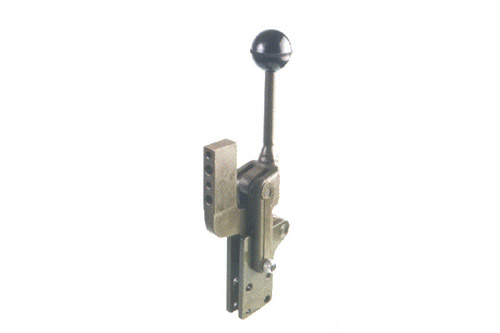

Vertical Arm Straight Base
