Magnetic Chucks

Magnetic Chucks
Request Quotes

Permanent Magnetic Rectangular And Circular Chucks Permanent Magnetic Chucks Are Designed To Hold The Work Piece on Surface Grinding Machine. These Chuck Are Manufactured For Normal as well as For Heavy-Duty Operations. Chucks Are Designed And Manufactured According To Job. It Consists of Powerful NdFeB Magnets Hence It Generates More Power So That Highter Stock Removal Is Possible.

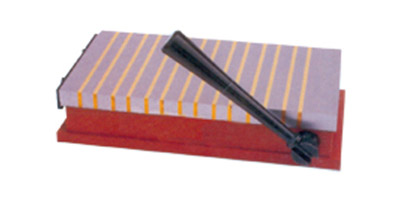

Heavy Duty Permanent Magnetic Rectangular Chucks
Size (In mm) L x W x H Magnetic Pole Gap
175 x 125 x 60 16.
200 x 100 x 60 16
200 x 150 x 60 16
250 x 150 x 60 19
300 x 150 x 60 19
300 x 150 x 65 19
350 x 200 x 65 19
450 x 150 x 65 19
450 x 200 x 70 19
500 x 200 x 70 19

Magnetic Chucks
Request Quotes

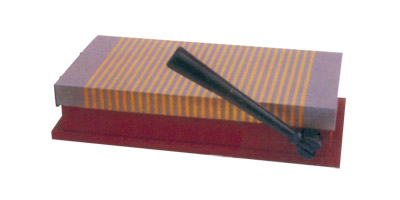

Close Pole Heavy Duty Permanent Magnetic Rectangular Chucks
Size (In mm) L x W x H Magnetic Pole Gap
250 x 150 x 65 14
300 x 150 x 65 14
300 x 150 x 65 14
350 x 150 x 65 14
400 x 150 x 65 14
450 x 150 x 70 14
450 x 200 x 70 14
500 x 200 x 70 14
600 x 200 x 70 14
450 x 250 x 70 14
450 x 300 x 70 14

Magnetic Chucks
Request Quotes

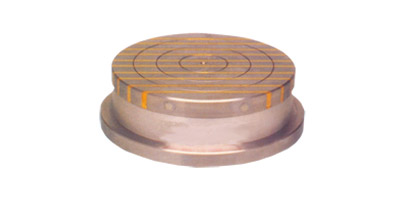

Circular Heavy Duty Permanent Magnetic Chucks
Size (MM) Dia x Ht.
Dia. 75 x 60 H
Dia. 100 x 60 H
Dia. 150 x 60 H
Dia. 200 x 60 H
