Manual Toggle Clamps

Toggle clamp is a simple Mechanism, which holds instantly.

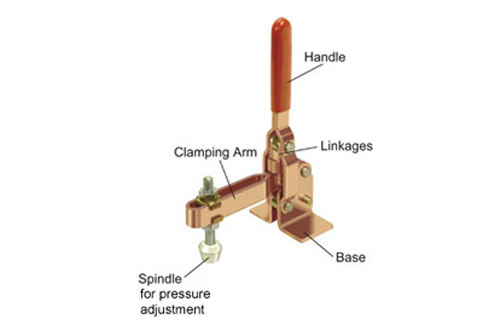

The Toggle Clamps Consist of :

• Handle to operate
• Clamping arm to reach the work piece
• Linkages for multiplying the applied force
• Spindle for pressure adjustment
• Base for mounting at the workplace

The handle is operated which thereby moves the clamping arm to hold the work piece. A required clamping force is achieved and exerted on the work piece. Under this action the Toggle Clamp Holds the work piece firmly and positively.
