Fixture Elements

| Products

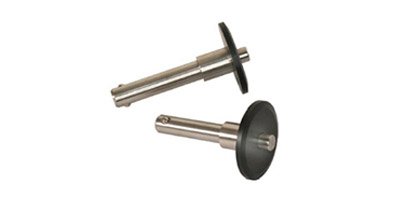

Button Handle Ball Lock Pins

Button Handle Ball Lock Pins

These Pins are precision ground Locating Pins. By simply pressing the button of the pin you can either insert or remove the pin. The balls in the pin ensure Positive Locking until released by pressing the button. The Ball Lock Pins are available in 6 different outer diameters & the length is to be decided by the customer as per the application. The standard pins are offered with Two locking balls, but can also be supplied with four balls for greater pull-out strength. Available in alloy or stainless steel.

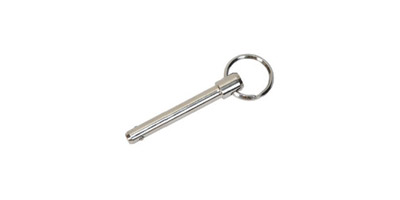

Socket Pins with Spring Loaded Balls

Socket Pins with Spring Loaded Balls

These Pins are similar to the Ball Lock Pins, except that the Balls are spring loaded and not locked. You can either insert or remove the pin by simply pushing / pulling it with minimal hand pressure. The balls in the pin ensure Positive Locking and the spring ensures that it does not open in case of vibrations.The Ball Lock Pins are available in 6 different outer diameters and the length is to be decided by the customer as per the application. The pins are offered with Two locking balls.

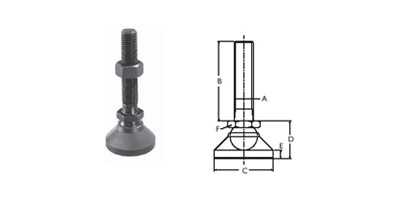

Leveling Pads - Male
Leveling Pads - Male
Features
Material Steel Quality - Heat Treated
Finish Black Oxide

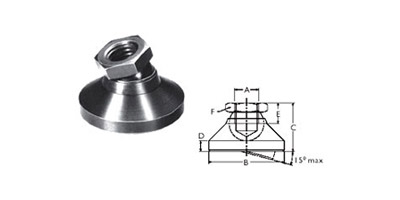

Leveling Pads - Female
Leveling Pads - Female
Features
Material Steel Quality - Heat Treated
Finish Black Oxide

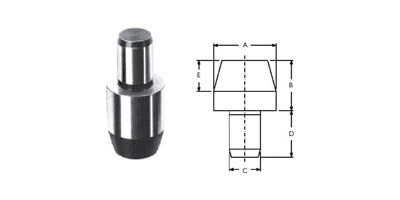

Locating Pins Din - 6321
Locating Pins Din - 6321
Features
Material Tool Steel, Hardened, Ground.
Note : Locating pin cylindric for locating work pieces in toleranced holes. Can also be used as stops and feet.
